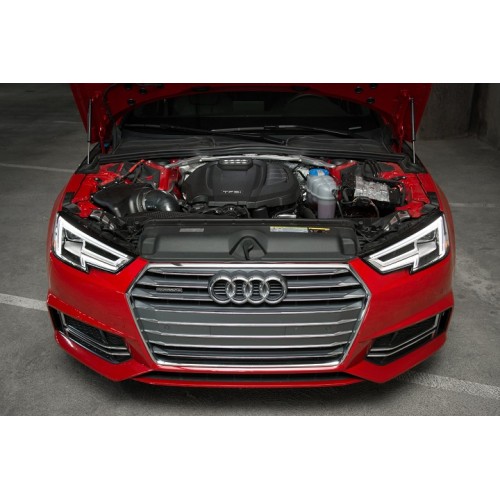

034Motorsport is pleased to introduce the P34 Cold Air Intake System for B9 A4/Allroad & A5!
Significant effort went into developing this comprehensive performance intake solution for the longitudinal EA888 2.0T Gen 3 engine found in the latest generation Audi A4/Allroad & A5. Subsequently, the P34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful airbox design.

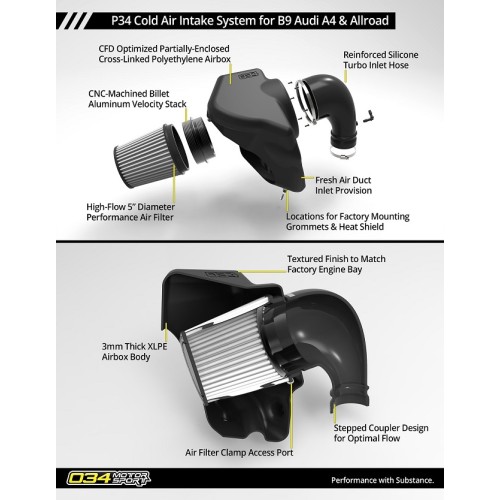

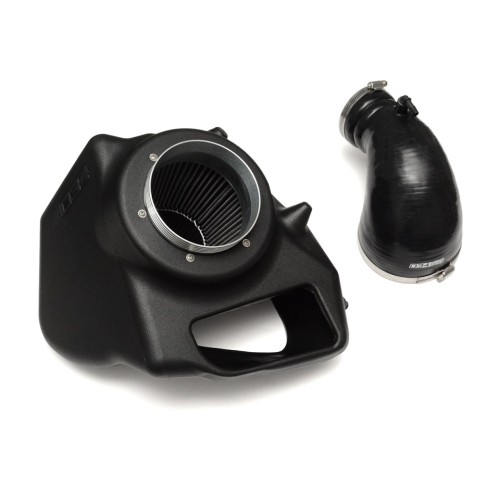

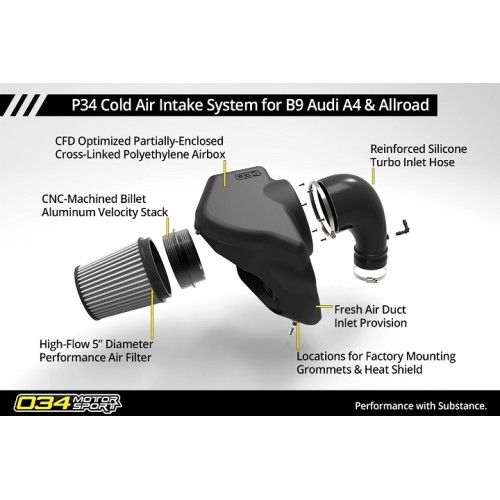

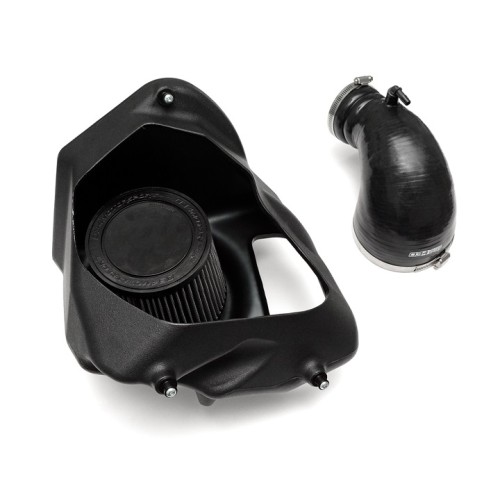

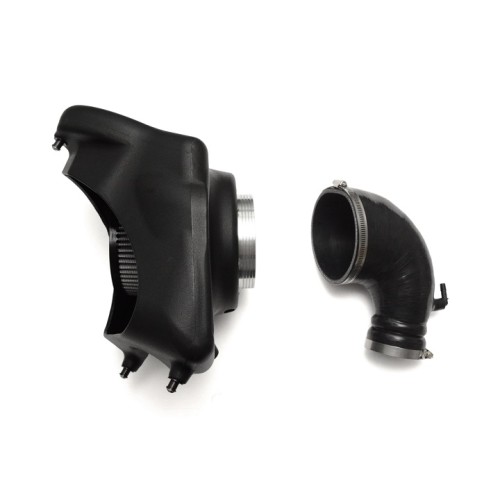

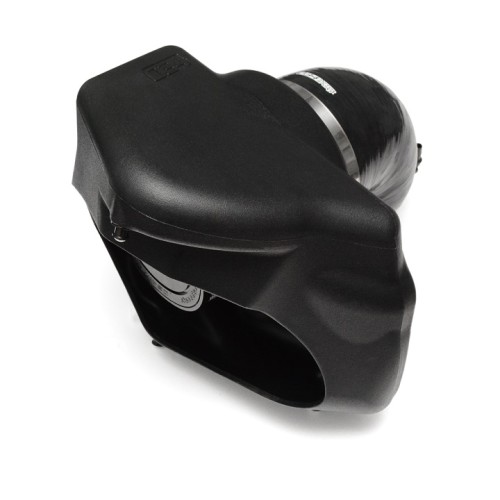

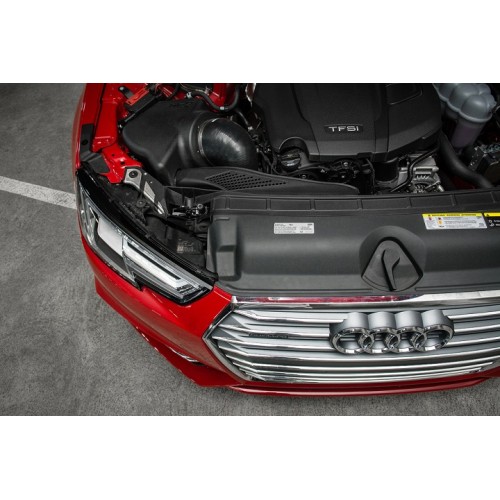

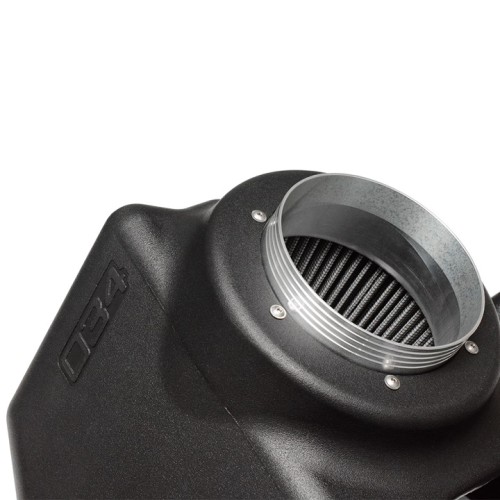

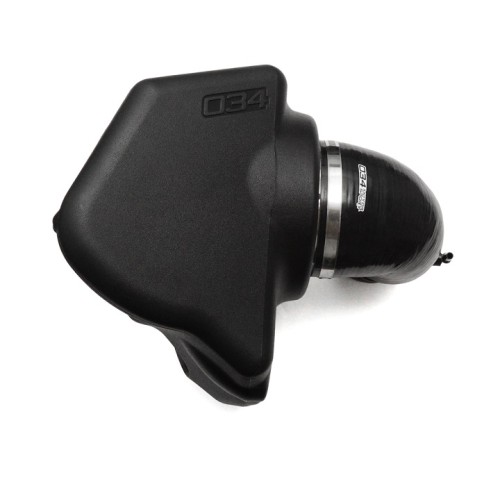

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the P34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a CNC-machined billet aluminum velocity stack feeding a reinforced silicone turbo inlet pipe.
P34 COLD AIR INTAKE SYSTEM FEATURES
DYNO-PROVEN PERFORMANCE GAINS
The P34 Cold Air Intake System for B9 Audi A4/Allroad & A5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the fruition of this design approach, the P34 Cold Air Intake System yields a measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

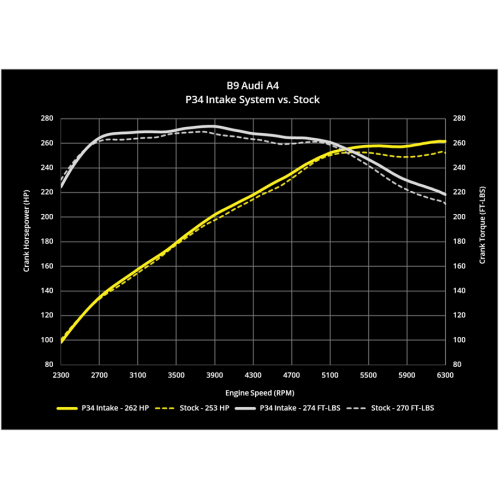

PEAK HORSEPOWER & TORQUE

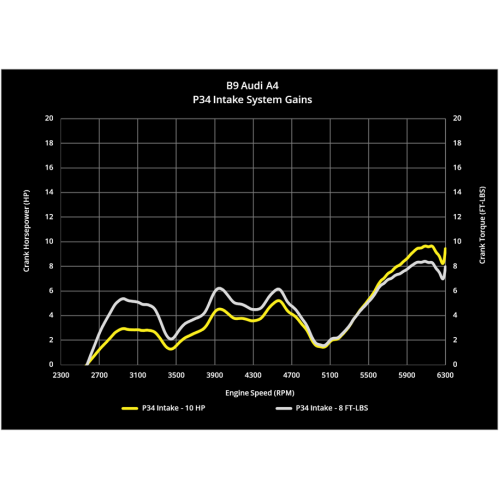

PEAK GAINS IN HORSEPOWER & TORQUE

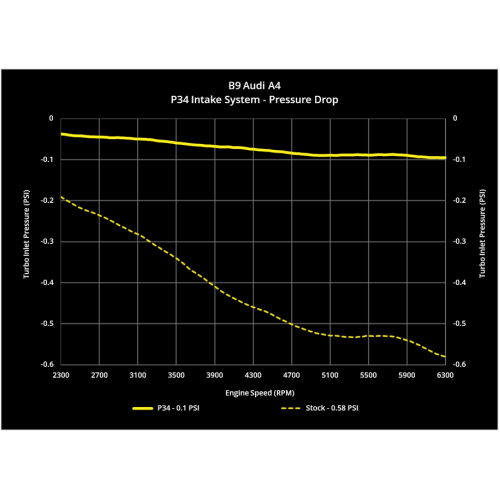

PRESSURE DROP REDUCTION
P34 COLD AIR INTAKE SYSTEM PERFORMANCE DATA
| FACTORY B9 AUDI A4/A5 AIRBOX | P34 COLD AIR INTAKE SYSTEM | |
|---|---|---|
| Peak Horsepower | 253 HP | 262 HP |
| Peak Torque | 270 FT-LBS | 274 FT-LBS |
| Peak Horsepower Gains | 10 HP @ 6,200 RPM | |
| Peak Torque Gains | 8 FT-LBS @ 6,200 RPM | |
| Peak Pressure Drop at Turbo Inlet | 0.58 PSI | 0.10 PSI |
| Peak Pressure Drop Reduction | 0.48 PSI @ 6,300 RPM |
APPLICATION GUIDE
Please Note: Not for use on emissions-controlled vehicles in California.
